Portable Medical Ventilator Machine / Air Breathing Apparatus High Performance

Name: Portable Medical Ventilator Machine Air Breathing Apparatus High Performance
Brand: HFMED
Price: 1 USD

Brand Name : HFMED

Model Number : HF-700B

Certification : CE,ISO

Place of Origin : Shanghai,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets/month

Delivery Time : 5~7 days after payment received

Packaging Details : carton or wooden case

Breathing Mode : A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL

Tidal Volume : 50~1500ml

I/E Ratio : 4:1 ~ 1:4

Respiration Frequency : 1~99 bpm

IMV Frequency : 1~20 bpm

Lung compliance : ≤30 mL / kPa

Oxygen Concentration : 21%~100%

Maximum Minute ventilation : ≥18L / min

Pressure Limited : 1.0kPa~ 6.0kPa

PEEP : 0 ~ 1.0 kPa

Contact Now

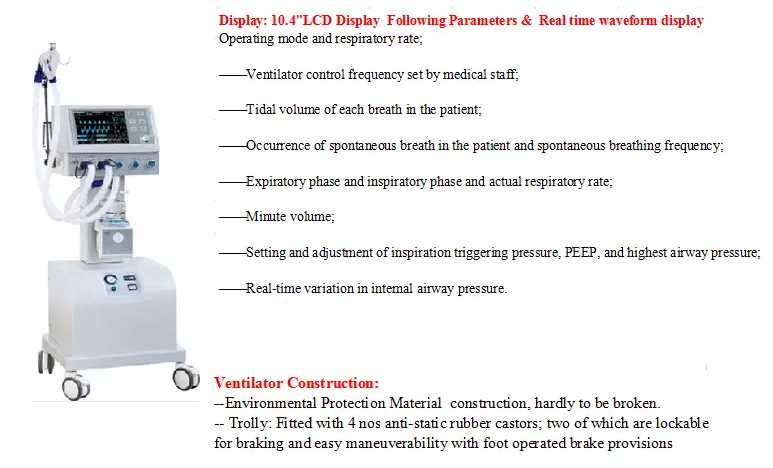

Advanced mode Transport Portable medical Ventilator Machine air breathing apparatus

Ventilator PA-700B (Advance model)

Microprocessor controlled, Pneumatically driven electronically controlled

10.4” TFT display screen for ventilation parameters

Humidifier with temperature adjustment

With medical air compressor, built-in backup battery up to at least 4 hours

Applied for Adult and Pediatric

Main technical specifications:

Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT. MANUAL

Tidal Volume: 50~1500ml

I/E Ratio: 4:1 ~ 1:4

Respiration Frequency : 1~99 bpm;

IMV Frequency: 1~20 bpm

Lung compliance: ≤30 mL / kPa

Oxygen Concentration: 21%~100%

Maximum Minute ventilation: ≥18L / min

Pressure Limited: 1.0kPa~ 6.0kPa

PEEP: 0 ~ 1.0 kPa

Ptr: -1.0kPa~1.0kPa

Max .Safe Pressure: ≤6.0 kPa

Trigger Method: Pressure Trigger

Control Method: Pressure Control

Ventilation monitoring:

Tidal volume,Minute ventilation,Frequency,Airway Pressure,I/E,inspiration time,PEEP,FiO2,

Waveform of time-airway Pressure and so on.

Product Size

Length(mm)	660 440
Width(mm)	550 290
Height(mm)	1320 380
CBM(mm3)	0.50 0.05
N/W(kg)	52 8
G/W(kg)	62 12
Remark	Main Unit CTN/Li-lon Accessory CTN
CTNS	1 1

Product Detail

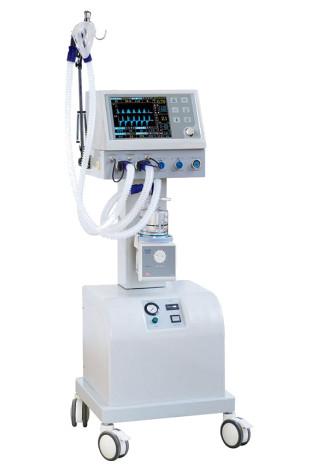

Portable Medical Ventilator Machine / Air Breathing Apparatus High Performance

Product Tags:

air breathing apparatus

medical ventilator machine

Portable Medical Ventilator Machine / Air Breathing Apparatus High Performance Images
